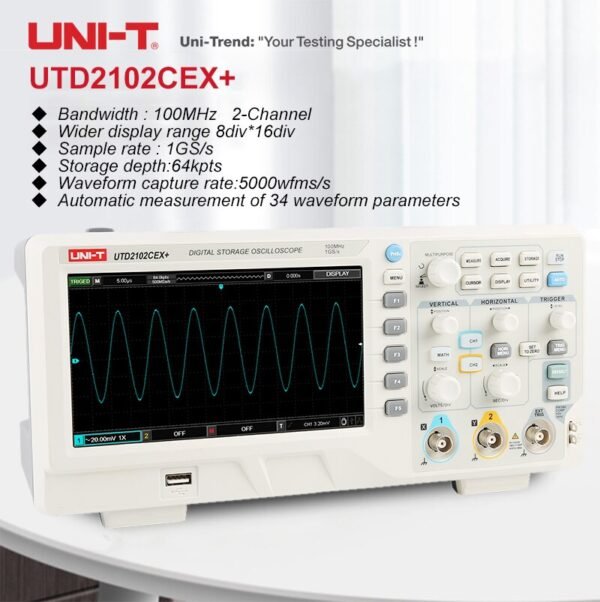

UTD2102CEX 100Mhz máy hiện sóng Uni-Trend

Original price was: 8.500.000 ₫.Current price is: 8.200.000 ₫.

Specifications:
Model: UTD2102CEX+
Channels: 2
Bandwidth: 100MHz
Sampling rate: 1GS/s
Rise time:＜3.5ns
Memory depth: 64kpts
Waveform capture rate >5, 000wfms/s
Vertical scale (V/div): 1mV/div~20V/div
Time base scale (s/div): 2ns/div~50s/div
Timing accuracy≤±（50+2 × service life ）ppm
Time base mode : Y-T、X-Y、Roll
Storage methods: Setup, wave, bitmap
Trigger types: Edge, pulse width, alternate，Slope, video
Mathematical operations: ＋, －, ×, ÷, FFT
Auto measurements: Pk-Pk , Ampl, Max , Min, Low, Middle, High, Mean, RMS，OverSht,, PreSht, Period, Frequency、Rise, Fall, +Width，-Width, -Duty, +Duty,Delay,Phase，FRR,FRF,FFR,FFF,LRR,LRF,LFR,LFF,34 paramet ers in total
Displayed measurements: Display 5 measurements at the Read More

Add to wishlist
Category: Tag:

Description



FEATURES:

1. 100/200MHz bandwidth
2. 2 channels, low noise floor, wide vertical range: 1mV/div~20V/div
3. Automatic measurement of 34 waveform parametersWider display range 8div x 16div.
4. Memory depth: 64kpts.
5. System software upgrade via USB drive.
6. Waveform capture rate 5,000wfms/s.
7. Automatic measurement of 34 waveform parametersWider display range 8div x 16div.
8. Standard square wave output with multiple frequencies: 10Hz,100Hz, 1kHz,10kHzUnique independent time base function.
9. Lissajous waveform phase measurement.
10. Supports plug-and-play USB storage device; communication with and remote control of computer through the USB device.
